Title : Ion chromatographs-Hyphenated techniques
Content : Metrohm IC systems can be further extended to include: Highlights Sophisticated sampling systems (2060 MARGA and PILS) Straightforward sample preparation systems (CIC) Highly sensitive detection systems (IC-MS, IC-ICP/MS, and more) Multiparameter analysis on a single system, e.g. by combining Metrohm IC with titration or voltammetry (TitrIC and VoltIC) Benefits Sophisticated sampling Online monitoring of ambient air 2060 MARGA (Monitor for AeRosols and Gases in Ambient air) is a dedicated solution for online monitoring of ambient air. 2060 MARGA collects the ionic load (anions and cations) from the aerosol and the gas fraction of a defined volume of ambient air, brings it into solution, and injects it into a dual channel ion chromatograph for subsequent analysis.
Title : 930 Combustion IC PP (AJ)
Content : Feature overview The 930 Combustion IC PP (AJ) enables the analysis of halogens and sulfur in flammable samples of all types using inline combustion digestion (pyrohydrolysis) with subsequent ion chromatography determination (Combustion IC). It comprises all required components, e.g., the Combustion Module from Analytik Jena (2.136.0700), the 920 Absorber Module, the 930 Compact IC Flex Oven/SeS/PP/Deg, and the MagIC Net software. If necessary, the 930 Metrohm Combustion IC package can be supplemented with an Autosampler for solid or liquid samples (MMS 5000 Autosampler). The entire analysis, including sample input and sample digestion, is completely automated and is completely controlled by MagIC Net. Tech specs Oven parts: 1 x 4.136.3000 Oven unit assembly 1 x 6.7301.000 Combustion tube for Combustion IC 1 x 6.7301.210 T connector CIC 1 x 4.136.3060 Cooling module CIC 1 x 4.136.3050 Bracket (cooling) 2 x 4.136.4050 Knurled screw with slot M3 x 25 1 x Knurled screw oven 1 x 6.2151.020 Cable USB A - USB B / 1.8 m 2 x 6.7304.020 Oxygen/Argon connection tubing 2 m 1 x Heat-resistant gloves 2 x 6.7304.000 FAST connector, angled 2 x 6.7304.010 FAST connector, straight 1 x 6.7301.220 Spring-wire clamp 7.3 -7.8 mm 1 x Fork clamp KS 13/2 with clamping screw 2 x 6.7301.230 Return cannula, Combustion IC 1 x 6.7301.240 Threading aid 1/16 in. tubing Combustion IC 1 x Flow check set 2 x U6000102 Fuse 10 ATH 1 x 6.2621.100 Hex key 3 mm ABD parts: 1 x 4.136.2000 Serial connection cable for samplers 1 x 6.7301.150 Substrate for liquid sample injections, 3 units 1 x 6.7302.100 Quartz boat 40 × 9 mm, 10 units 1 x 4.136.4410 Connection tubing ABD 1 x 6.7301.140 Septum 12.5 mm, 5 units 1 x 6.7301.160 Manual dosing syringe 100 µL 1 x 6.7303.220 Needles for 50 µL/100 µL syringes, 3 units 1 x 6.7301.110 Hook for ABD 1 x 4.136.3410 Protective cover for guide pipe 1 x 6.2621.140 Hex key 2.5 mm 1 x 6.7301.250 Flame sensor 1 x 4.136.2400 Flame sensor cable (ABD) 1 x Tweezers 1 x Pin wrench 2 mm adjustable (ABD) 1 x Guide rail
.jpg)
Title : Liquid Autosampler CIC (TEI), 30 positions
Content : 2.0136.0610 Feature overview The Liquid Autosampler CIC (TEI) is used for automated analysis of liquid samples using Combustion IC. It can be used in combination with the Boat Introduction Modules (6.07311.010 or 6.07311.020) and the Liquid Introduction Module (6.07311.040).
Title : Combustion Module (Oven + ABD, AJ)
Content : 2.136.0700 Feature overview The Combustion Module (Oven + ABD, AJ) enables sample digestion during pyrolysis and oxidation of all types of flammable samples. The Combustion Module consists of the combustion oven and the Auto Boat Driver (automatic sample introduction). Both are products made by Analytik Jena which have been optimized specially for coupling with ion chromatographs. Tech specs Oven parts: 1 x 4.136.3000 Oven unit assembly 1 x 6.7301.000 Combustion tube for Combustion IC 1 x 6.7301.210 T connector CIC 1 x 4.136.3060 Cooling module, CIC 1 x 4.136.3050 Bracket (cooling) 2 x 4.136.4050 Knurled screw with slot M3 x 25 1 x Knurled screw oven 1 x 6.2151.020 Cable USB A - USB B / 1.8 m 2 x 6.7304.020 Oxygen/argon connection tubing 2 m 1 x Heat-resistant gloves 2 x 6.7304.000 FAST connector, angled 2 x 6.7304.010 FAST connector, straight 1 x 6.7301.220 Spring-wire clamp 7.3 -7.8 mm 1 x Fork clamp KS 13/2 with clamping screw 2 x 6.7301.230 Return cannula, Combustion IC 1 x 6.7301.240 Threading aid 1/16 in. tubing, Combustion IC 1 x Flow check set 2 x U6000102 Fuse 10 ATH 1 x 6.2621.100 Hex key 3 mm ABD parts: 1 x 4.136.2000 Serial connection cable for sampler 1 x 6.7301.150 Substrate for liquid sample injections, 3 units 3 x Quartz boat 40 × 9 mm 1 x 4.136.4410 ABD connection tubing 1 x 6.7301.140 Septum 12.5 mm, 5 units 1 x 6.7301.160 Manual dosing syringe 100 µL 1 x 6.7303.220 Needles for 50 µL/100 µL syringes, 3 units 1 x 6.7301.110 Hook for ABD 1 x 4.136.3410 Protective cover for guide pipe 1 x 6.2621.140 Hex key 2.5 mm 1 x 6.7301.250 Flame sensor 1 x 4.136.2400 Flame sensor cable (ABD) 1 x Tweezers 1 x Face pin wrench 2 mm adjustable (ABD) 1 x Guide rail
Title : Combustion Module (Oven + LPG/GSS, AJ)
Content : 2.136.0730 Feature overview The Combustion Module (Oven + LPG/GSS, AJ) enables sample digestion during the pyrolysis of liquefied gases and gases under pressure. The Combustion Module (Oven + LPG/GSS, AJ) is comprised of the combustion oven and the LPG/GSS module. Both are products of Analytik Jena which have been optimized specially for coupling with ion chromatographs.
Title : LPG Module (AJ)
Content : 2.136.0740 Feature overview The LPG Module (AJ) is a sample injection system for liquefied gases. The module is controlled automatically and moves the respective quantities of gas to the combustion oven for combustion. This product from Analytik Jena has been specially optimized for coupling with ion chromatographs.

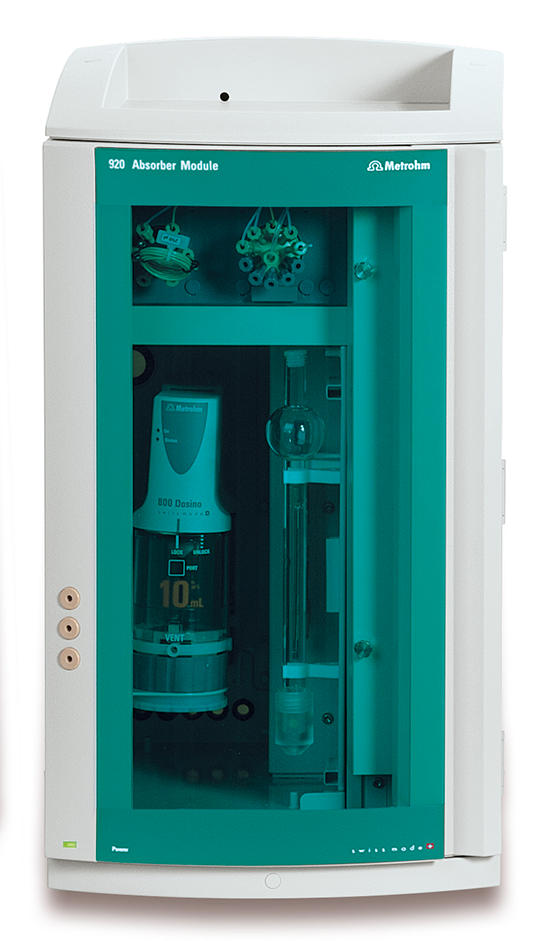

Title : 920 Absorber Module
Content : 2.920.0010 Feature overview The 920 Absorber Module combines the Combustion Module with the ion chromatograph. The 920 Absorber Module ensures that the gaseous compounds of the analytes are dissolved and channeled to the IC. It is responsible for the entire Liquid Handling. In addition to Combustion IC, it can also be used for gas analysis.
Title : Metrohm Combustion IC Manual - Ceramic
Content : 2.930.9040 Feature overview The Metrohm Combustion IC Manual - Ceramic package enables the analysis of halogens and sulfur in flammable samples of all types using inline combustion digestion (pyrohydrolysis) with subsequent ion chromatography determination (Combustion IC). It comprises all required components, such as the Combustion Oven (TEI) from Trace Elemental Instruments (2.0136.0600), the ceramic combustion tube (6.07311.110), the 920 Absorber Module, the 930 Compact IC Flex Oven/SeS/PP/Deg, and the MagIC Net software. If necessary, the Metrohm Combustion IC package can be supplemented with one of the following Autosamplers: Solid Autosampler CIC (TEI), Liquid Autosampler CIC (TEI) or GLS Sampler CIC (TEI).
Title : TitrIC flex I – The basic hyphenated system for IC and titration
Content : TitrIC flex I Feature overview TitrIC flex I – the basic system Fully automated system for direct measurement of temperature, conductivity, and pH value; the titrimetric determination of p value, m value, calcium, and magnesium, and the determination of anions using ion chromatography following Inline Ultrafiltration. The system consists of the 856 Conductivity Module, three 800 Dosinos, Rod Stirrer "Sample Robot", OMNIS Titrator, OMNIS Dosing Module, OMNIS Sample Robot S, and 930 Compact IC Flex Oven/SeS/PP/Deg with sequential suppression, and an IC conductivity detector. The system is operated using the OMNIS and MagIC Net software packages. TitrIC flex – the power pack for ion analysis.
