Title : Dry Evaporators, Concentrators & Cold Traps

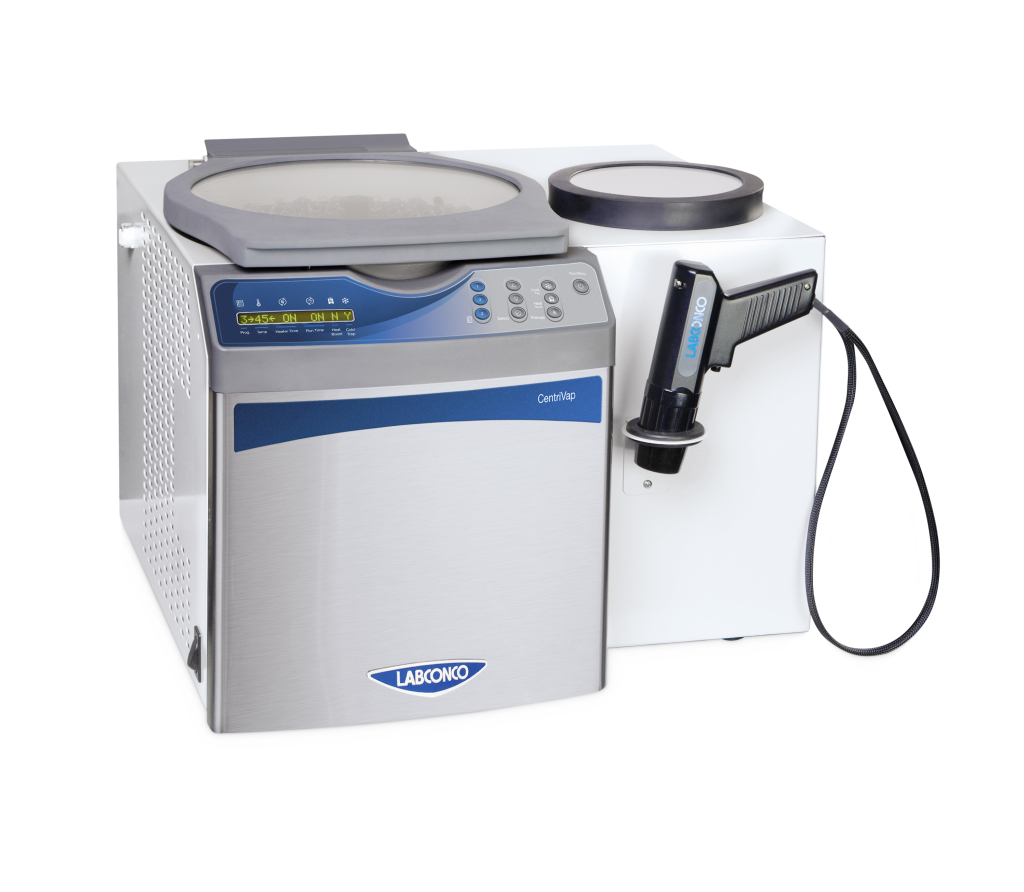

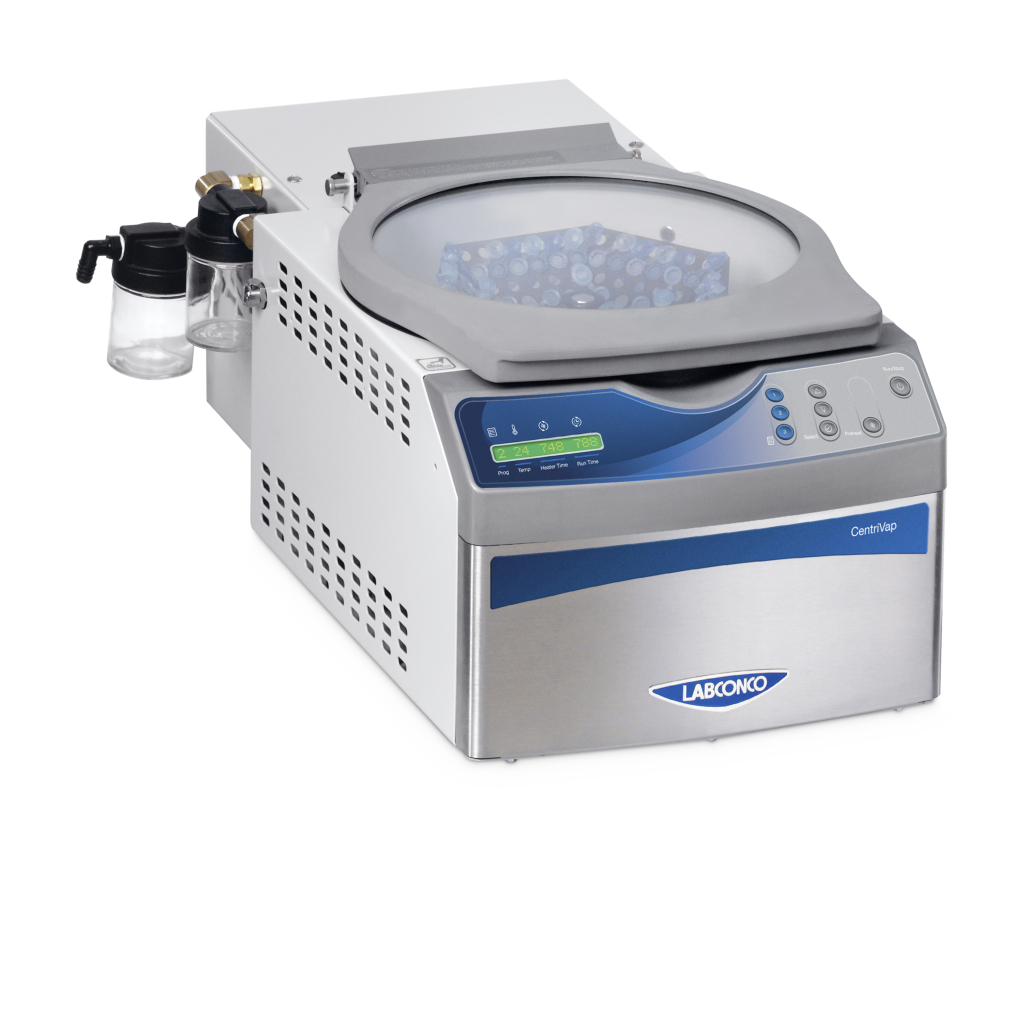

Content : Labconco offers a wide range of concentrators and evaporators to meet your sample prep needs. CentriVap Concentrators use a combination of centrifugal force, vacuum and heat to speed evaporation of small samples. RapidVap Evaporation Systems use combinations of dry block heat, vortex motion, vacuum or nitrogen blowdown to reduce samples to dryness or an endpoint volume

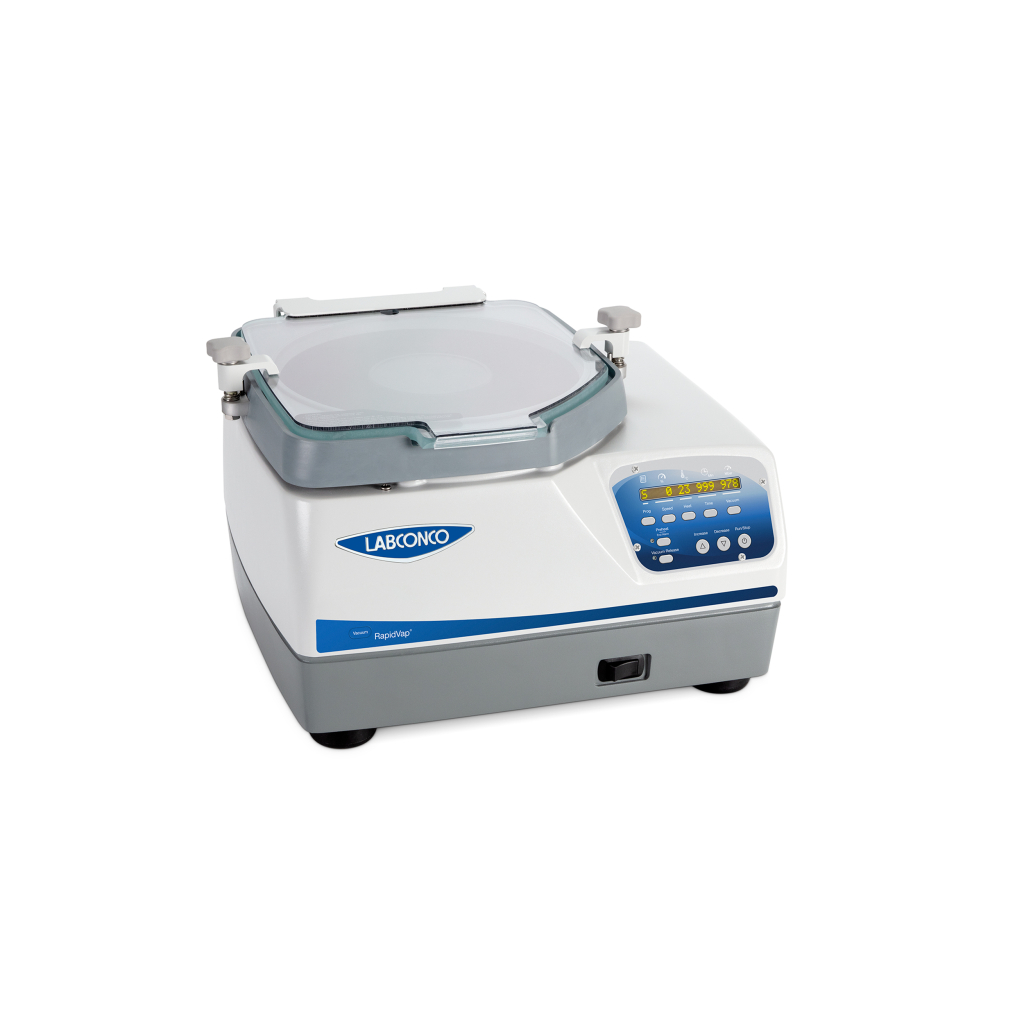

Title : RapidVap Vacuum Dry Evaporation Systems
Content : the RapidVap Vacuum Evaporation Systems are ideal for preparation of samples in a variety of applications including drug discovery, agrichemistry, mycology testing and environmental analysis. The systems use vacuum along with heat and vortex motion to help speed evaporation and provide an alternative to traditional centrifugal evaporation methods. These systems may be used with a broad range of aggressive chemicals. Heat is supplied by a dry block heating system that, unlike water baths, adds no potential source of contamination and requires no maintenance. The RapidVap Vacuum Evaporation Systems accommodate twelve different, interchangeable accessory sample blocks holding sample volumes from just a few milliliters to as large as 450 milliliters. As many as 110 each 12 or 13 mm tubes may be loaded at once. Additional blocks accommodate various tube types including conical centrifuge tubes and scintillation vials. Contact Labconco about custom blocks to fit special glassware configurations such as VOA vials.

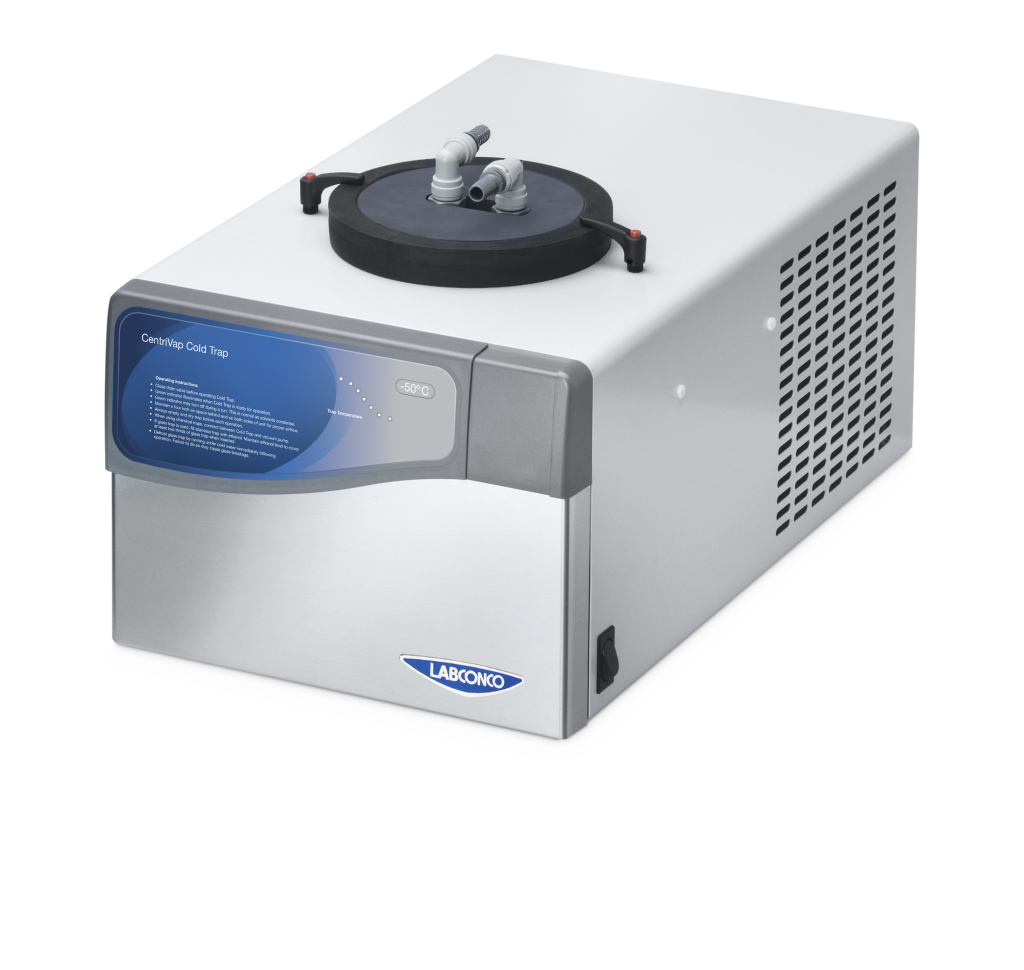

Title : CentriVap Cold Traps
Content : The CentriVap Cold Trap collects evaporated liquid from a CentriVap Concentrator, protecting an accessory vacuum pump and the laboratory environment from the corrosive effects of vapors and fumes emitted from samples. Brushed, Stainless Steel and Powder-Coated Steel Exterior Illuminated Temperature Graph with Endpoint Indication (Operating temperature of -40° C) HCFC-Free Refrigerant System 1/3 hp Compressor (Reaches -50° C in less than 30 min.) 4-liter, Stainless Steel Collector Acrylic or Stainless Steel Lid (with 2 Quick-Disconnect fittings for connection to a CentriVap Concentrator) Stainless Steel Drain Port (with corrosion-resistant, nylon valve)
